Technical specifications

Technical data

Anode voltage 60–90 kV
Anode current 1–14 mA
Focal spot 0.5 mm, fixed anode
Image detector Flat panel
Image acquisition Single 200 degree rotation
Scan time 10–25 s
Typical reconstruction time 2–25 s

Maximum volume sizes

Volume size [cm]

Maximum volume with a single scan:
Ø11 x 11


Dental programs

Volume size [cm]

Tooth
Ø3 x 3 – Ø5 x 8
Teeth
Ø7 x 3 – Ø11 x 11
TMJ
Ø3 x 3 – Ø8 x 8

Physical space requirements

Width 116 cm (45.5 in.)
Depth 140 cm (55 in.),
Height* 159-236 cm (62.5-93 in.)
Weight 137 kg (302 lbs)

With cephalostat:
Width 198 cm (78 in.)
Depth 140 cm (55 in.)
Height* 159-236 cm (62.5-93 in.)
Weight 158 kg (348 lbs)

*The maximum height of the unit can be adjusted for offices with limited ceiling space.

Example installation

Included in delivery

Planmeca 3D unit with 3D reconstruction server

Planmeca 3D unit with 3D reconstruction server

Minimum set up

Client workstation and database server

  • Planmeca Romexis 3D Explorer
  • Database server
  • Planmeca Romexis Image Database

The client workstation and database server can also be in separate computers.

Planmeca client workstation and database server

Additional equipment

Additional diagnostic workstations with different software configurations

Planmeca Romexis tools:

  • 3D Explorer
  • 3D Cross Sections module
  • 3D TMJ module
  • 3D Implant Planning module
  • DICOM module

The client workstation and database server can also be in separate computers.

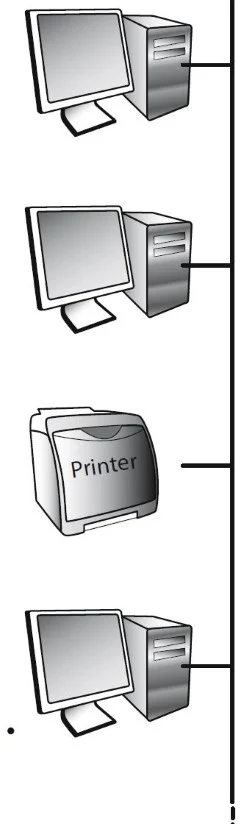

Planmeca additional workstations with different software configurations
